All UK lintels are a galvanized silver finish unless stated.
All product dimensions in the overview are for indication only. Some product dimensions vary as the lintel increases in length and material thickens.
PLEASE NOTE: The standard duty 90mm cavity range is the most popular product range that we stock. We therefore stock all lengths from 0750 - 4800 (mm) in increments of 150mm. Unlike our other ranges this range will be supplied to the nearest stock length from the length you add to basket. We will never supply a lintel less than the length you request.
Designed to support:
Not suitable to support precast concrete floors, attic trusses, heavy point loads.
Offload for all options by client. Our vehicles do not have mechanical offload facilities and our delivery driver cannot assist.
Order before 9am for next day delivery
Click & Collect with up to 48 hours notice
All UK lintels are a galvanized silver finish unless stated.
All product dimensions in the overview are for indication only. Some product dimensions vary as the lintel increases in length and material thickens.
Not suitable to support precast concrete floors, attic trusses, heavy point loads.
Standard Lengths (MM) | 600
1200 |
1350
1500 |
1650
1800 |
1950
2100 |
2250
2400 |
2550
3000 |
3150
3900 |
4050
4200 |
4350
4800 |

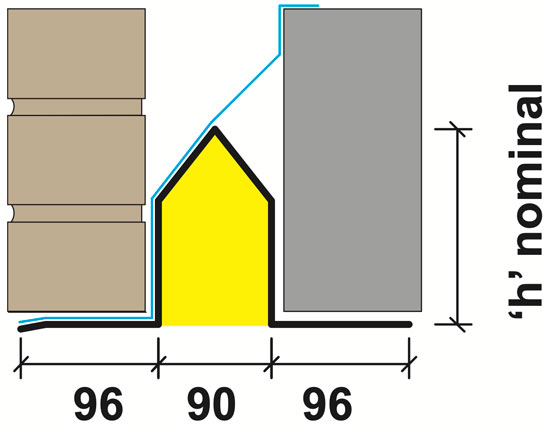

Nominal Height “h” (mm) | 95 | 113 | 134 | 140 | 153 | 190 | 190 | 225 | 225 |
Weights (kg/m) | 6.5 | 7.0 | 7.7 | 7.9 | 8.3 | 9.5 | 14.0 | 15.7 | 19.1 |
SWL 1:1/3:1 (kN) | 16 | 17 | 22 | 23 | 24 | 28 | 28 | 28 | 28 |
SWL 19:1 (kN) | 12 | 13 | 17 | 18 | 19 | 22 | 22 | 22 | 22 |
RM (kNm) | 2.2 | 2.9 | 4.5 | 5.6 | 6.8 | 10.0 | 13.3 | 15.5 | 16.2 |
