SKU: PSC100-215HS
SKU: PSC100-215HS
Offload for all options by client. Our vehicles do not have mechanical offload facilities and our delivery driver cannot assist.
Minimum 1/2 hour (30 mins) fire resistance.
Fast track 2-4 working day delivery

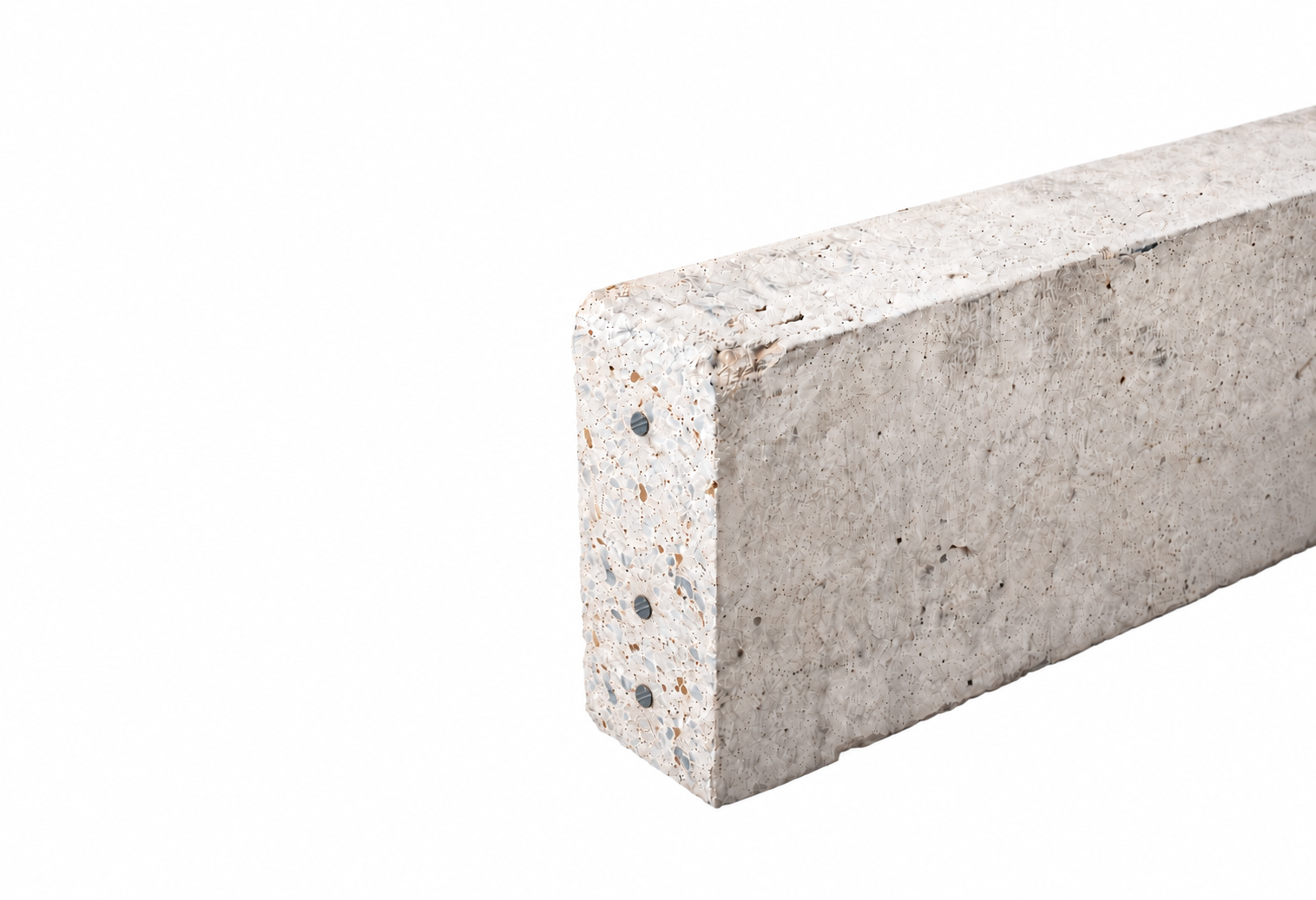

Our concrete lintels are cut to your chosen length
Once cut these items are non-returnable
Concrete lintels do have a designed camber in the product.
Installation should be with reinforcing bars positioned as shown in our specification table diagram. Photos are generic images.
Minimum 1/2 hour (30 mins) fire resistance.
Fast track 2-4 working day delivery
Our concrete lintels are cut to your chosen length
Once cut these items are non-returnable
Concrete lintels do have a designed camber in the product.
Installation should be with reinforcing bars positioned as shown in our specification table diagram. Photos are generic images.
Standard lengths (mm) | 900 | 1200 | 1350 | 1500 | 1650 | 1800 | 2100 | 2400 | 2700 | 3000 | 3300 | 3600 | 4050 | 4200 |
Clear Span (mm) | 600 | 900 | 1050 | 1200 | 1350 | 1500 | 1800 | 2100 | 2400 | 2700 | 3000 | 3300 | 3600 | 3900 |
Weight (kg/m) | 53.9 | 53.9 | 53.9 | 53.9 | 53.9 | 53.9 | 53.9 | 53.9 | 53.9 | 53.9 | 53.9 | 53.9 | 53.9 | 53.9 |
UDL (kN/m) | 78.5 | 63.2 | 57.4 | 49.2 | 43.1 | 36.9 | 27.2 | 21.5 | 16.7 | 13.3 | 10.8 | 9.0 | 7.5 | 6.4 |
RM (kNm) | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 |
