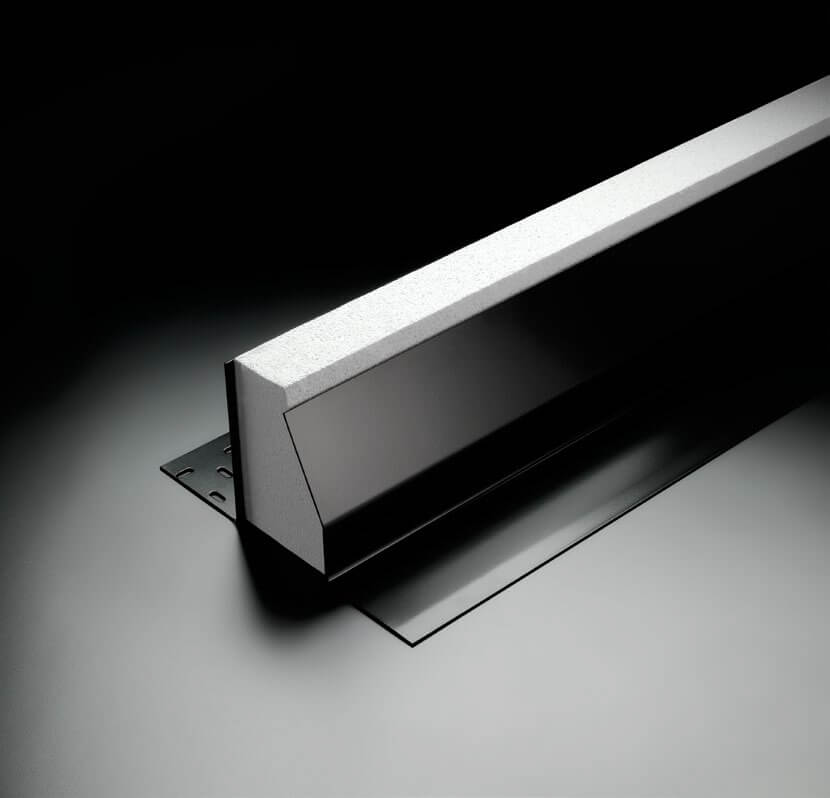

Catnic Thermally Broken Lintels
Catnic Thermally Broken Lintels are the only Lintel to provide a guaranteed linear thermal transmittance Psi values 0.05 W/mK or less (apart from using split lintels). Manufactured from powder coated galvanised steel with options to suit cavities from 90 to 165mm in standard, heavy and extra heavy duty performance categories.
Standard Duty
Cavity sizes available (mm) 90, 110, 130, 150 | Lengths available (mm) 750 – 3600
Heavy Duty
Cavity sizes available (mm) 90, 110, 130, 150 | Lengths available (mm) 900 – 2400
Extra Heavy Duty
Cavity sizes available (mm) 90, 110, 130, 150 | Lengths available (mm) 900 – 4800
Unique Design
A unique design, providing a complete thermal break between inner and outer leafs with NO brackets, resulting in outstanding thermal performance always 0.05 W/mK or less. Safe working loads in line with Catnic’s existing Cavity wall lintels.
Thermal Solutions
Catnic’s Thermally Broken Lintel has a BRE-certified energy transmittance Psi value of 0.02 to 0.05 W/mK with no compromise to structural performance. These lintels have been independently modelled by the BRE in a range of different wall constructions, and as a result, the range is listed on the BRE Certified Thermal Details and Products scheme.
Catnic’s Thermally Broken Lintel has been designed to cover all building types from small domestic dwellings to large apartment buildings, including buildings with concrete floor loads.
