SW200

1

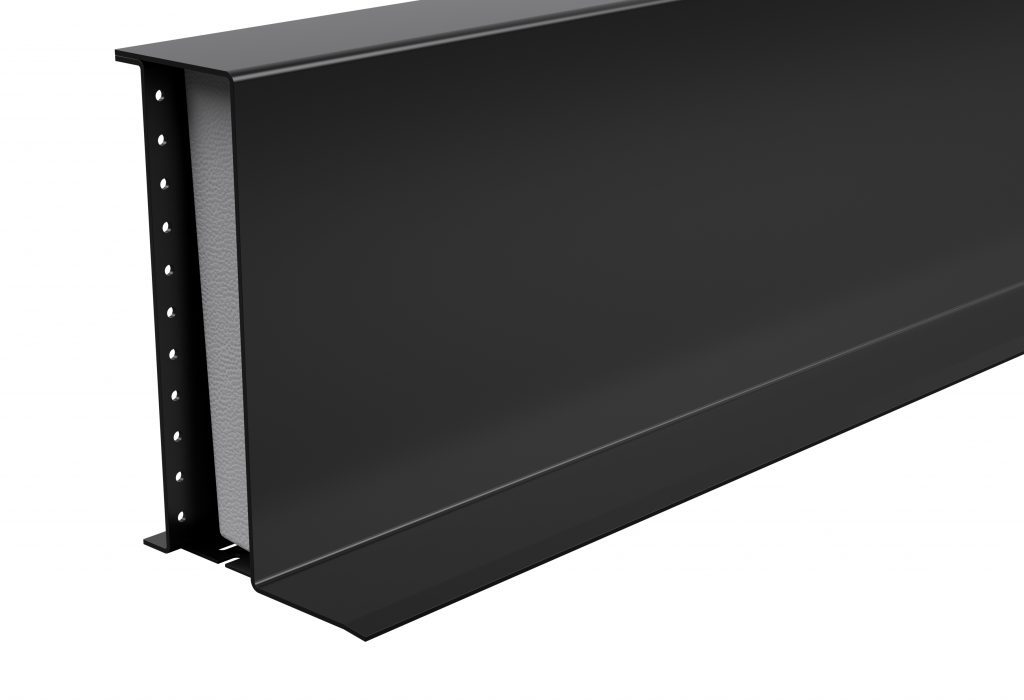

EXTERNAL (200mm) SOLID WALL

SW200

2
Lengths available (750-6000mm)
Product total
Options total
Grand total
Quick Length Selector
3
(Price ex VAT) (Price inc VAT)
£0.00

Calculate your shipping and estimated delivery date at basket

SKU: SW200

Equivalents to

  • Birtley SW200
  • IG XHD IBeam
  • Keystone IBX/K

Delivery Options - (select at Basket / Checkout)

Standard
(up to 5 working days)
Free - £500 min order
(up to 8 working days)
Fast Track
(up to 3 working days)
Next Working Day

Overview

Designed to support:

  • 236mm high
  • 6mm welded bottom plate
  • Extreme Loads
  • Concrete floor loads
  • Tile hanging
  • Masonry loads
  • Timber floor joists
  • Attic truss loads and/or roof trusses
  • Point loads: compound trusses, steel beams, etc
  • Inner and outer leaves must be suitably tied.
  • Manufactured by AL Lintels who are a CE Accredited company for structural steelwork to BSEN 1090-1 Exc 2

Product benefits:

  • The strongest solid wall lintel we offer
    • Galvanized finish to BS EN1461
    • Product Weight – 46 (kg/m)

Delivery Information

Standard & Free Delivery Options

  • We guarentee to deliver in up to 5 working days standard or up to 8 working days for free delivery.  Time is not of the essence.  You must be available at the delivery location during this period 8:00-17:00 each day to receive the delivery up to 17:00 on the ‘by date’ shown on your order. Deliveries are Monday – Friday and all lead times are working days.
  • You will receive an email and text notification of your delivery date once allocated to a vehicle by our transportation department with at least 24 hours notice. If you reject the deliver date offered then the order will go back in to our system and be subject to a further 5 or 8 working days lead time from the date of your delivery rejection notification.
  • If your item is selected for delivery via a 3rd party courier we will notify you via email and text with a dispatch date with 24 hours notice. Once dispatched delivery will be 1-4 working days and we will provide tracking link details.

Fast Track Delivery Option

  • We will also provide a 5-hour delivery slot for when you can expect to receive your order and a call around 1 hour prior to our arrival. You must be available at the delivery location during this period 8:00-17:00 to take delivery. Deliveries are Monday – Friday and all lead times are working days.
  • You will receive an email notification of your delivery date once allocated to a vehicle by our transportation department with at least 24 hours notice. If you reject the deliver date offered then the order will go back in to our system and be subject to a further 3 working days lead time from the date of your delivery rejection notification.

Next Working Day Delivery Option

  • We will also provide a 5-hour delivery slot for when you can expect to receive your order and a call around 1 hour prior to arrival. The order must be placed before 9am on the working day proceeding the delivery date otherwise the order will be processed the following working day. You must be available at the delivery location during this period 8:00-17:00 on the next working day to take delivery.
  • You will receive an email and text notification of your delivery date once allocated to a vehicle by our transportation department with at least 24 hours notice. If you reject the deliver date offered then the order will go back in to our system and be subject to a further 1 working days lead time from the date of your delivery rejection notification.

General Notes

  • Working days are Monday, Tuesday, Wednesday, Thursday & Friday (excluding any bank or national holidays) Any order placed on Saturday, Sunday or a bank or national holiday cannot be processed until the first working day after that and therefore will be treated as if ordered on that day. For example, An order placed on Saturday is treated as if it was ordered on Monday (unless Monday is a bank or national holiday) at 8 am.
  • The date shown on your order states ‘by x date’. This means your goods will arrive no later than 17:00 on the date shown. Your goods may arrive before this date.
  • If a product is returned after delivery there will be no refund of the original delivery fee paid.

Delivery & Re-delivery

  • If you are not available once the goods have been dispatched to sign and accept the delivery or do not have adequate people on site to offload the goods or mechanical offload facilities available, then the goods will be returned to our depot at a cost of £69 + vat (Failed Delivery Fee).  A re-delivery fee equal to that of the original order will also apply to any re-dispatch of your order. The Failed Delivery Fee and the re-delivery charge will need to be paid in full prior to us being able to arrange the re-delivery. Refunds will not be made for the original delivery costs of any failed deliveries. The lead time for any re-dispatch of your order will be equal to the original order lead time and commence from receipt of payment of the re-delivery fee.

Offload for all options by client. Our vehicles do not have mechanical offload facilities and our delivery driver cannot assist. Some long items may be up and over the cab on arrival.

Please visit our Terms and Conditions page for full T&C’s

All UK lintels are a galvanized silver finish unless stated.

Some items are cut from longer stock length. Once cut these items are non-returnable. All product dimensions in the overview are for indication only. Some product dimensions vary as the lintel increases in length and material thickens or if the item is cut from a longer stock profile.

All UK lintels are a galvanized silver finish unless stated.

Some items are cut from longer stock length. Once cut these items are non-returnable. All product dimensions in the overview are for indication only. Some product dimensions vary as the lintel increases in length and material thickens or if the item is cut from a longer stock profile.

Specification

Length 750

4200

4350

4800

4950

5400

5550

6000

SWL (kN) 120 100 90 65
Weight (kg/m) 41.3 41.3 41.3 41.3
H (mm) 236 236 236 236
