SKU: SL150
SKU: SL150
Offload for all options by client. Our vehicles do not have mechanical offload facilities and our delivery driver cannot assist.
All UK lintels are a galvanized silver finish unless stated.
Some items are cut from longer stock length. Once cut these items are non-returnable. All product dimensions in the overview are for indication only. Some product dimensions vary as the lintel increases in length and material thickens or if the item is cut from a longer stock profile.
All UK lintels are a galvanized silver finish unless stated.
Some items are cut from longer stock length. Once cut these items are non-returnable. All product dimensions in the overview are for indication only. Some product dimensions vary as the lintel increases in length and material thickens or if the item is cut from a longer stock profile.
Not suitable to support precast concrete floors, attic trusses, heavy point loads.
Standard Lengths (MM) | 600
1200 |
1350
1500 |
1650
1800 |
1950
2100 |
2250
2400 |
2550
3000 |
3150
3900 |
4050
4200 |
4350
4800 |

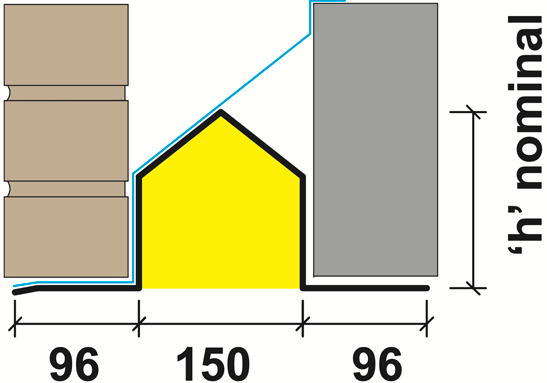

Nominal Height “h” (mm) | 95 | 113 | 134 | 140 | 153 | 190 | 190 | 225 | 225 |
Weights (kg/m) | 7.3 | 7.9 | 8.5 | 8.7 | 9.1 | 10.3 | 15.4 | 16.6 | 21.3 |
SWL 1:1/3:1 (kN) | 16 | 17 | 22 | 23 | 24 | 28 | 28 | 28 | 28 |
SWL 19:1 (kN) | 12 | 13 | 17 | 18 | 19 | 22 | 22 | 22 | 22 |
RM (kNm) | 2.2 | 2.9 | 4.5 | 5.6 | 6.8 | 10.0 | 13.3 | 15.5 | 16.2 |
